Pull-out unit for pallet rack with 100% extension, 600 kg load capacity, Front-loaded, ½ EUR-pallet

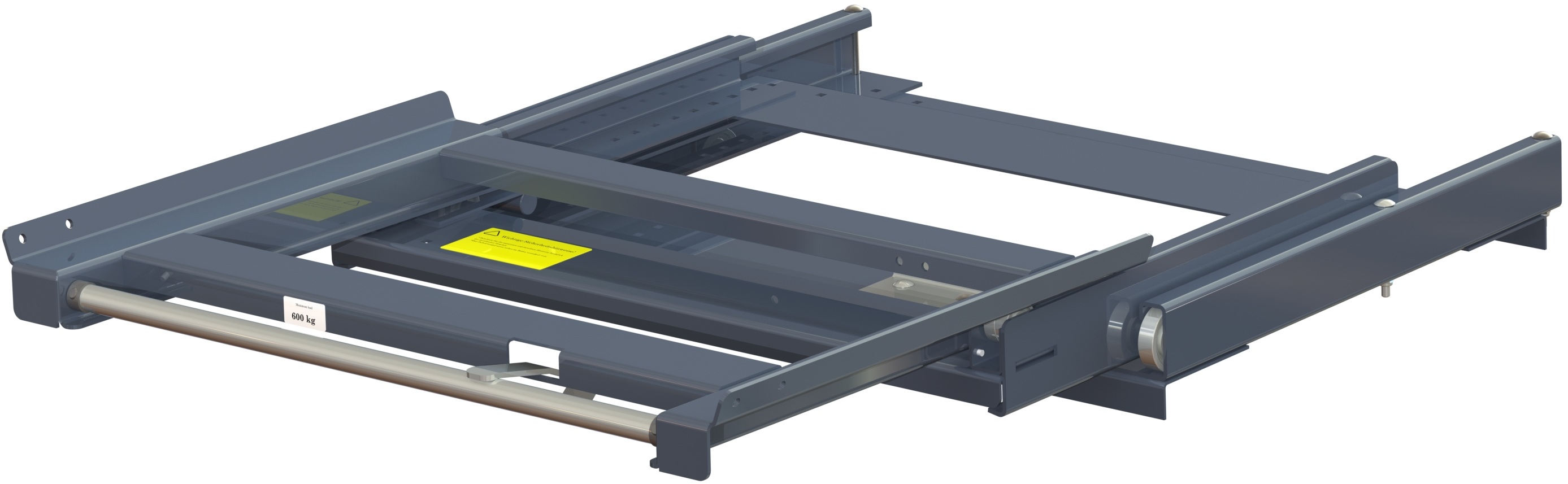

The Smart Storing Beam-mounted Pull-out Unit is a pallet pull-out unit for pallet racking, built for warehouse managers and production teams who need safe, ergonomic access to a full pallet without a forklift. The upper frame slides the pallet clear of the rack so goods can be picked manually from the front.

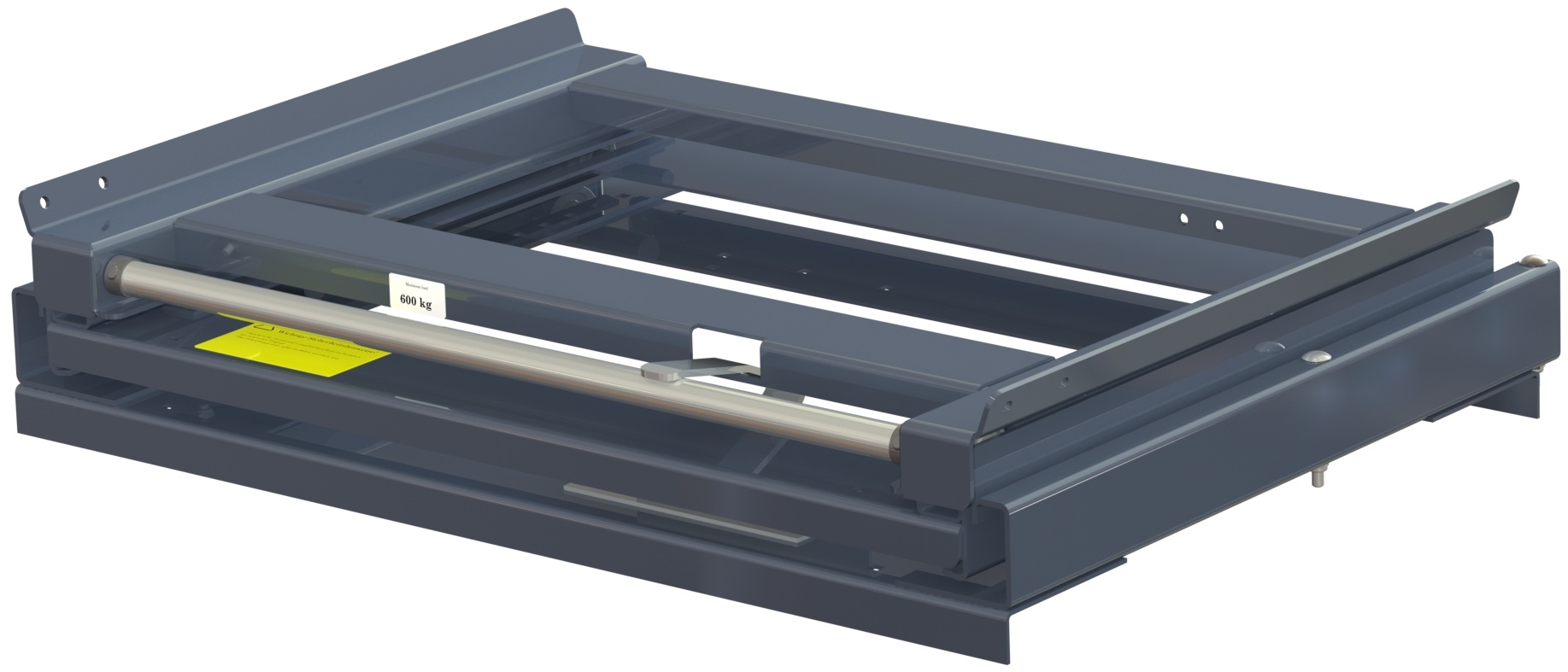

The unit is constructed from powder-coated steel with a RAL 5010 blue frame, also available in grey or a special colour. Beam-mounted units fit on the cross-beams between the pallet racking uprights; the lower frame is bolted to the beams while the upper frame runs out on double ball bearings at the front, giving a low profile and smooth travel even at high load factors.

The unit locks automatically when pushed back into the rack and installs with four bolts. It is compatible with almost any pallet racking on the market and can be fitted to existing beams. Each unit is supplied with a yellow safety label, assembly instructions, and user information.

Beam-mounted pull-out units suit automotive manufacturing, warehouse and distribution, workshop and maintenance, and production logistics where heavy pallet loads must be picked safely and ergonomically.
