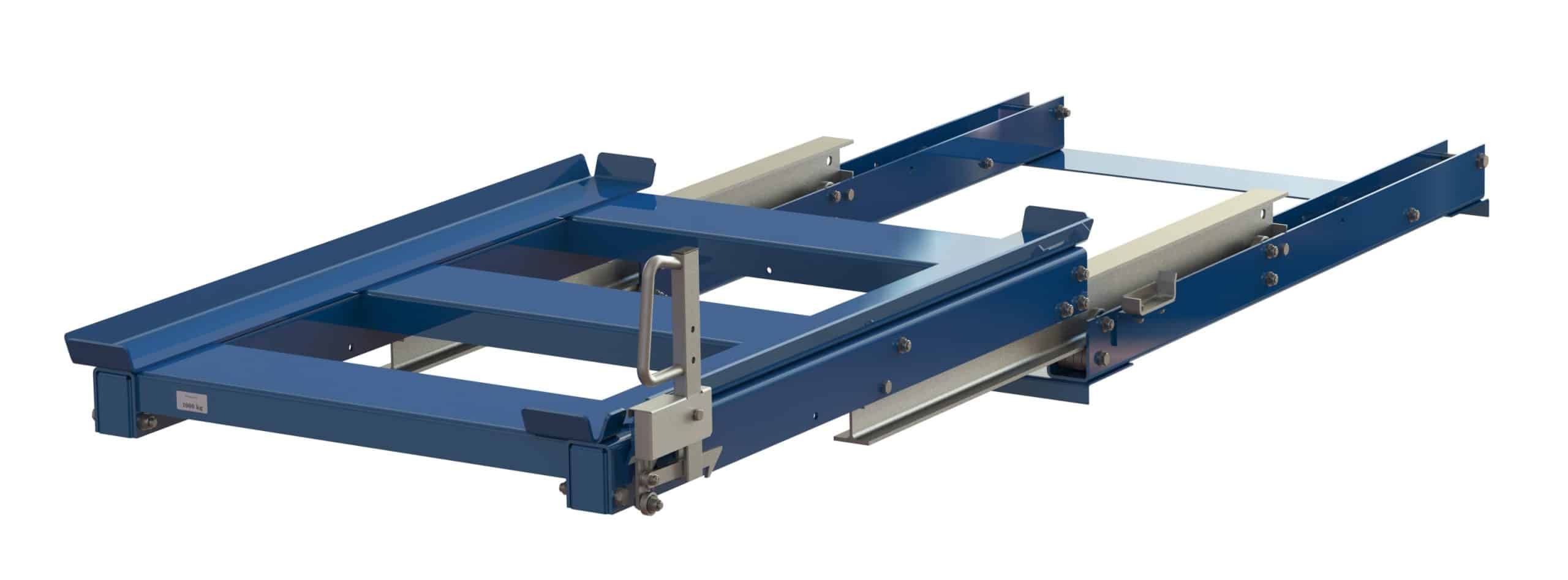

Pull-out unit for pallet rack with 100% extension, 1000 kg load capacity, Front-loaded, Short-side handled for wire mesh containers

The Smart Storing Beam-mounted Pull-out Unit for wire mesh containers is a pull-out unit for pallet racking, built for warehouse and production teams who store steel wire mesh containers and steel boxes with high point loads. Reinforced side profiles and upturned safety edges keep goods secure during extension and handling.

The unit is constructed from powder-coated steel with a RAL 5010 blue frame, also available in grey or a special colour. Beam-mounted units fit on the cross-beams between the pallet racking uprights; the lower frame is bolted to the beams while the upper frame runs out on double ball bearings at the front for a low profile and smooth, durable travel.

The unit is sized for wire mesh containers of 1200 mm depth and 800 mm width, and it locks automatically when pushed back, installs with four bolts, and fits almost any pallet racking on existing beams. Easy Action handles can be added for heavier loads.

Wire mesh container pull-out units suit automotive manufacturing, metal fabrication, warehouse and distribution, and production logistics where heavy containers must be picked safely and ergonomically.
