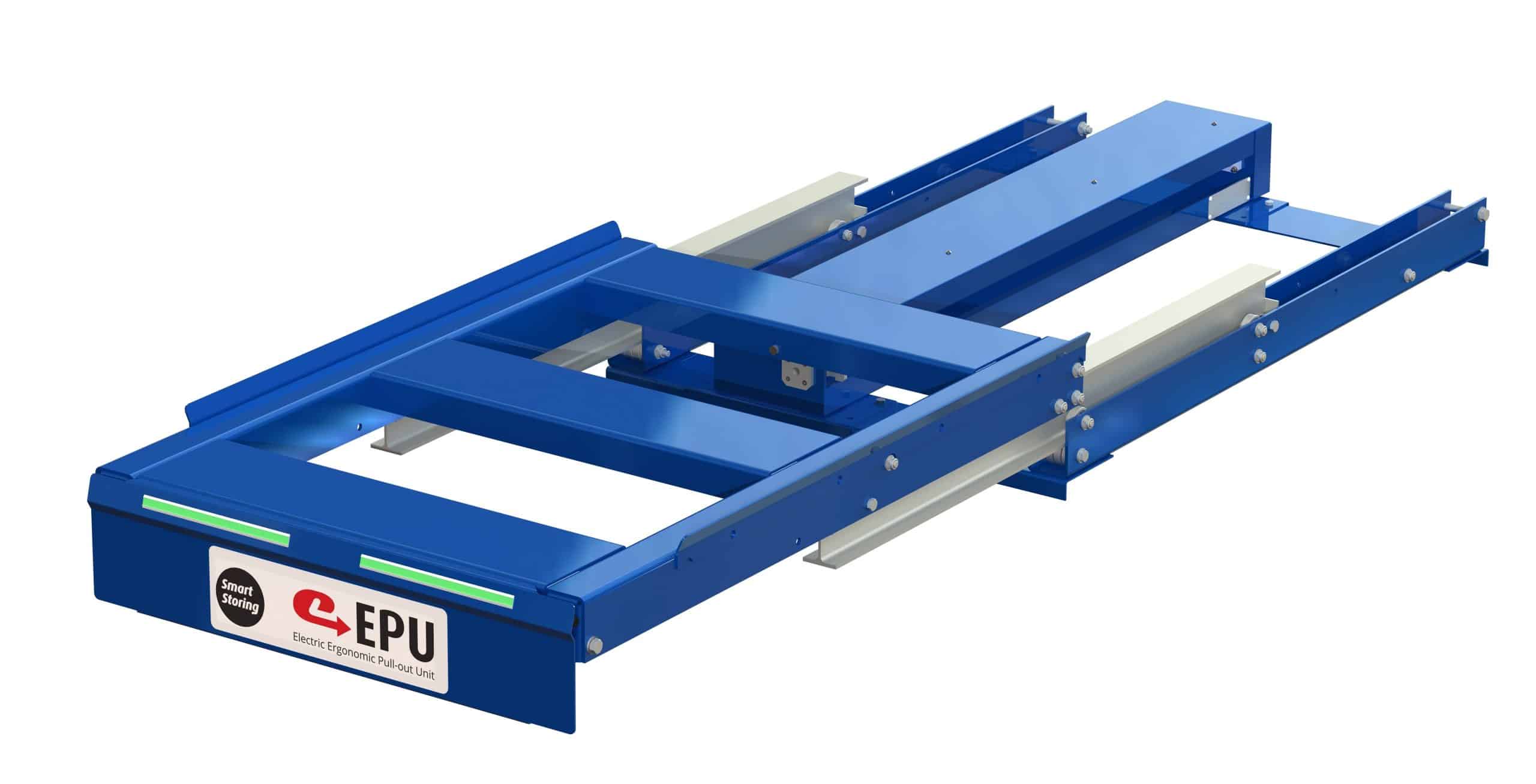

e-EPU electric pull-out unit, 1000 kg, 95% extension, rear-loaded, with safety front
Electric pull-out unit (e-EPU) with 1000 kg load capacity and 95% extension, rear-loaded with a safety front, in the ergonomic e-EPU series for hands-free pallet picking, that eliminates all manual handling force by extending a full EUR pallet at the press of a button. A servo motor with encoder gives soft start and stop and a full stroke in about 6 seconds. The steel unit measures 847 x 1260 x 245 mm, mounts to a pallet rack with four screws, and suits heavy picking, overhead-crane work, and robot-cell automation.
Description
The Smart Storing e-EPU is an ergonomic electric pull-out unit for pallets, built for production and warehouse teams who need to eliminate the manual force of pulling out heavy loads. This rear-loaded model carries up to 1000 kg, extends 95% at the press of a button, and removes all manual handling effort from the operator.
The unit is driven by a servo motor with an encoder and controlled by a built-in PLC, giving soft start and stop and a full stroke in about 6 seconds. It is manufactured from powder-coated steel, available in a RAL 5010 blue or grey frame, and measures 847 x 1260 x 245 mm. An integrated safety front protects the operator during the powered movement of the unit.
Installation is simple: the e-EPU attaches to a pallet rack with four screws and connects to a power cable, with optional radio control for remote operation. It is designed for applications where heavy goods are picked from pallets, often with the help of an overhead crane, and can also be placed in a robot cell and integrated into a fully automatic solution.
The e-EPU suits automotive manufacturing, warehouse and distribution, heavy assembly, and automated production environments where full pallets are extended for picking and ergonomic, hands-free handling is essential.
