Compact Storage Units

Compact Storage Units can accommodate a large number of easily accessible items within a footprint scarcely larger than a EUR pallet. These units are designed with a modular structure and offer a wide range of accessories for customization according to your specific needs. Achieve maximum storage efficiency in just one square meter.

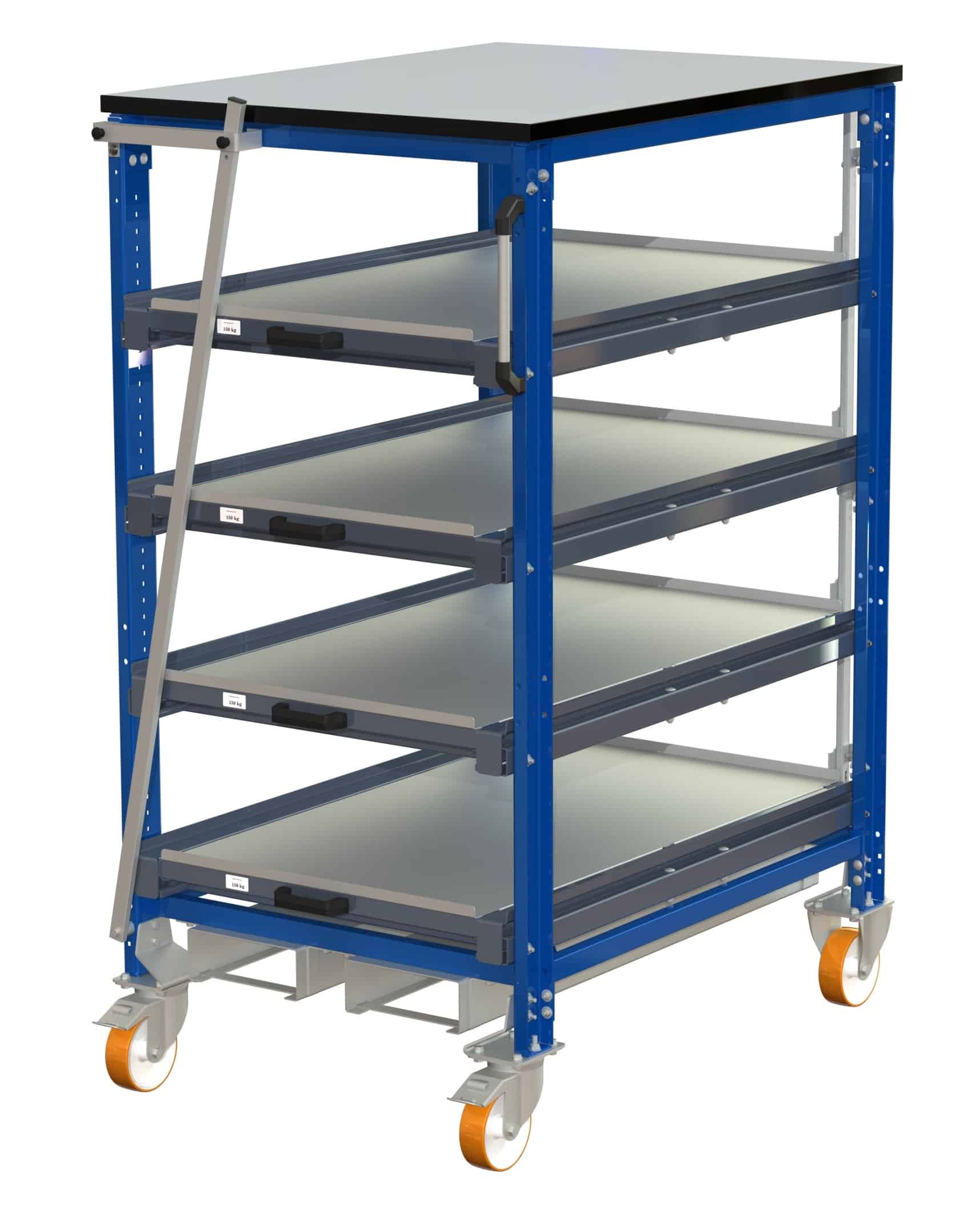

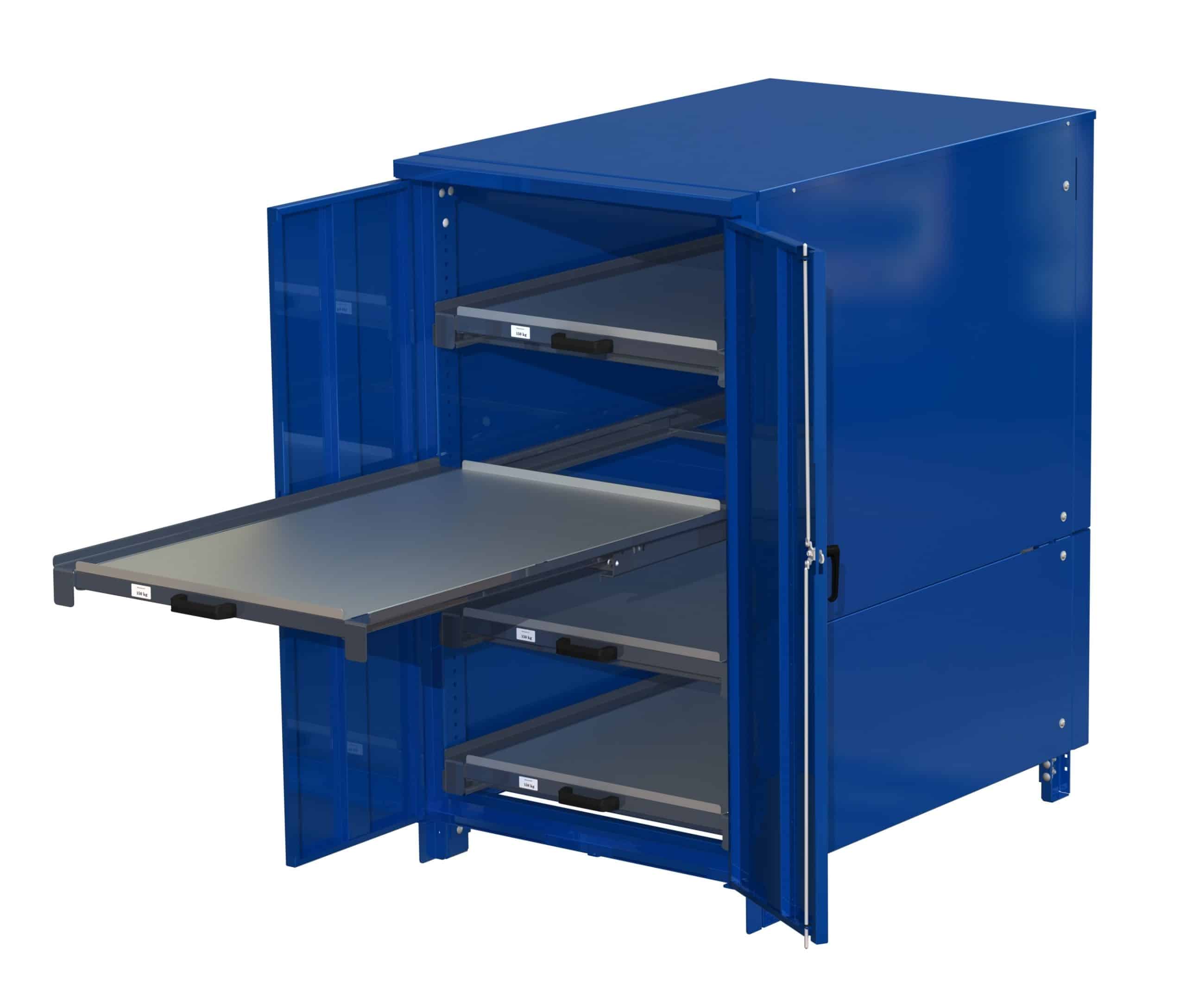

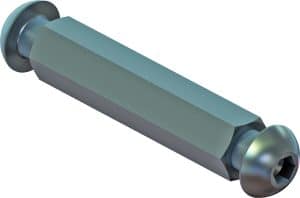

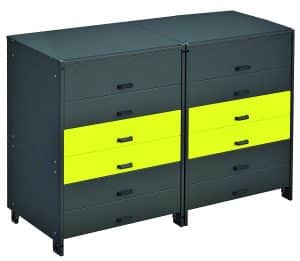

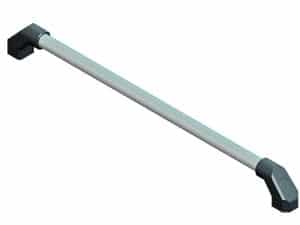

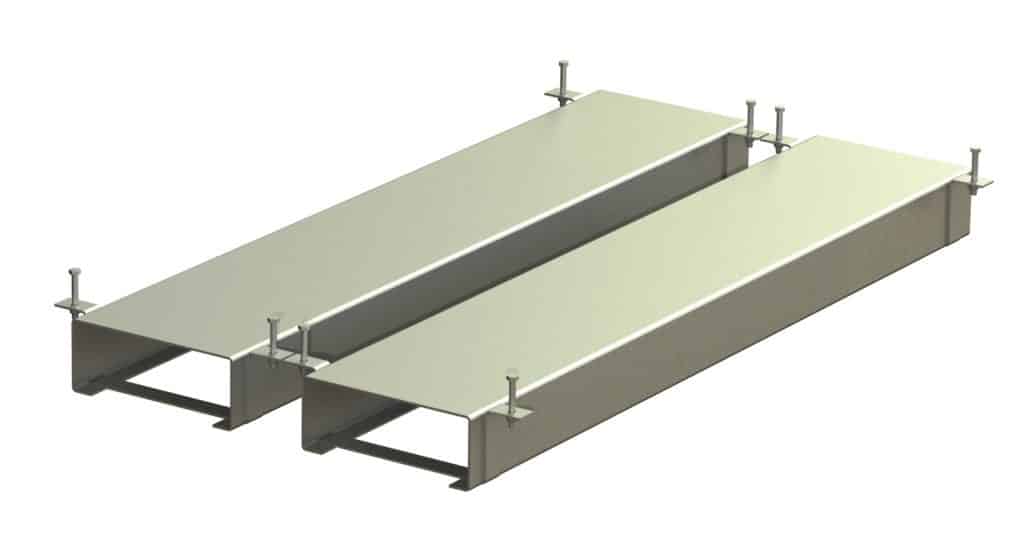

Features

Click the buttons and read more about features

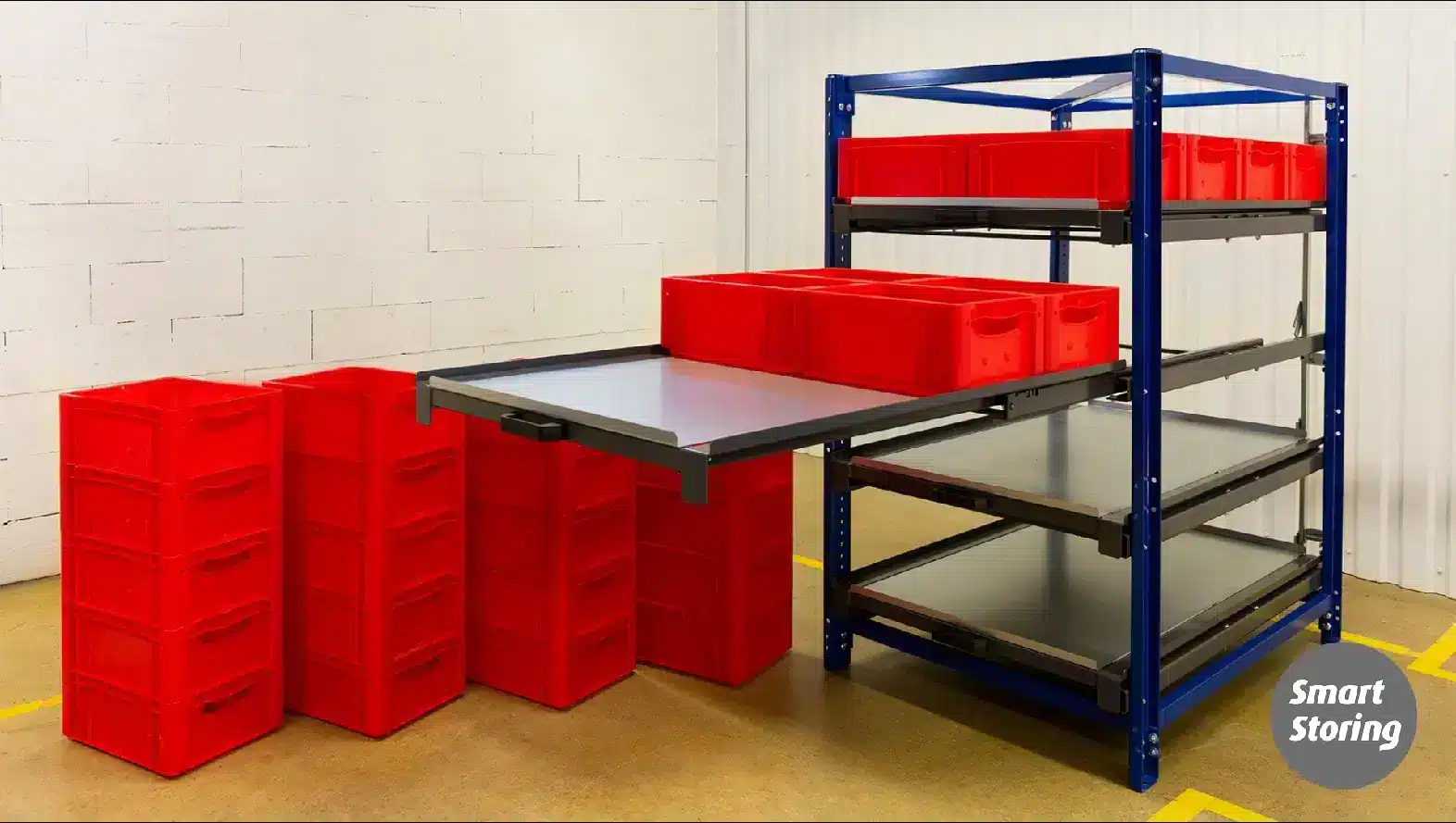

Ind byra 2 1

Help choosing the right one

The frames are available in two basic configurations: short-side handled and long-side handled, indicating on which side the pull-out shelves extend. The posts have pre-made holes at 30 mm enters for fitting shelves to your specifications.

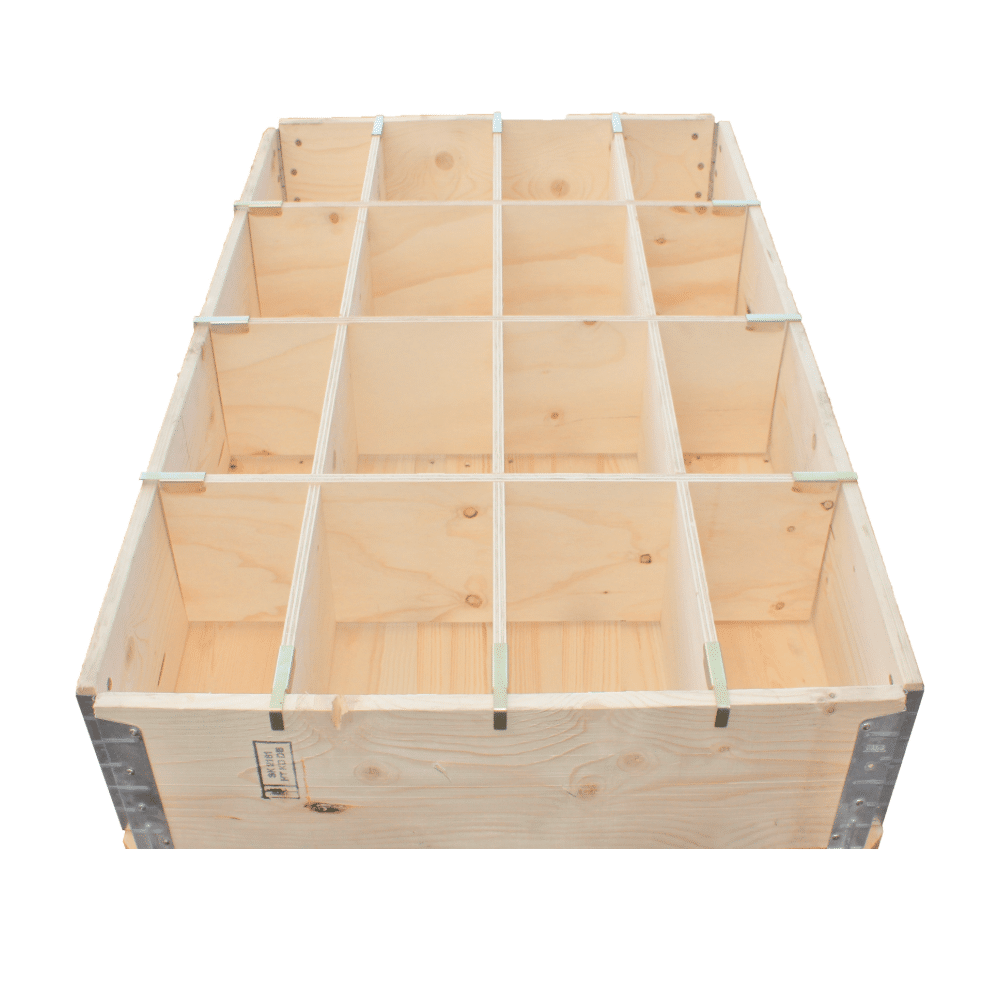

The shelves are covered with steel shelf panels made of strong galvanized steel plate and have 20 mm edges all around. The shelf size is 800 x 1200 mm, which is a standardized EUR measurement suitable for EUR bins and accessories for pallet collars. The shelves have a maximum load capacity of 150 kg with 100% pull-out or 200 kg with 70% pull-out.

Frame

Pull-out capacity

70% Pull-out

70% shelves are great for combining smaller boxes in the front and larger boxes in the back, offering numerous combination possibilities.

100% Pull-out

For maximum accessibility!

100% shelves are the ideal choice for smaller boxes or compartments. If you are storing boxes with a depth of less than 400 mm, this option is the obvious choice.

70% Pull-out

2-WAY UNIT The unit can be pulled out in two directions, offering access from both sides. This 2-way function enables two users to utilize one unit for two different or similar items. Additionally, it proves advantageous in assembly ines; while one assembler picks from one side, another person can replenish with new material from the other side.

Shelves

NUMBER OF SHELVES	CLEARANCE*(space between shelves)
3	395 mm
4	275 mm
5	215 mm
6	155 mm
7	125 mm
8	95 mm
9	95 mm

NUMBER OF SHELVES	CLEARANCE*(space between shelves)
3	366 mm
4	246 mm
5	186 mm
6	126 mm
7	96 mm
8	66 mm
9	66 mm

NUMBER OF SHELVES	CLEARANCE*(space between shelves)
3	402 mm
4	282 mm
5	222 mm
6	162 mm
7	132 mm
8	102 mm
9	102 mm

*The tables display the clearance achieved with different numbers of shelves when standard-mounted with even distribution. Alternatively, shelves can be arranged in various individual combinations based on preference.

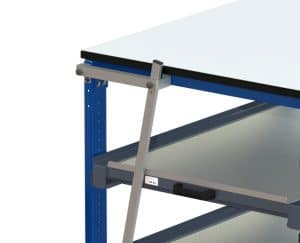

SHELF LOCK

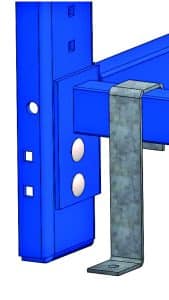

Prevents more than one shelf from being extended at the same time and ensures that the unit cannot tip over. Useful if you are unable to bolt it to the floor.

Compact Storage Unit
Short-side handled
70%

For more information about each individual product, click on the article number.

ART.NO.		(1-way)	Width	Depth	Height	Specifications
22 111-0	200 kg	70%	880 mm	1273 mm	1560 mm	1 Shelf
22 112-0	200 kg	70%	880 mm	1273 mm	1560 mm	2 Shelves
22 113-0	200 kg	70%	880 mm	1273 mm	1560 mm	3 Shelves
22 114-0	200 kg	70%	880 mm	1273 mm	1560 mm	4 Shelves
22 115-0	200 kg	70%	880 mm	1273 mm	1560 mm	5 Shelves
22 116-0	200 kg	70%	880 mm	1273 mm	1560 mm	6 Shelves
22 117-0	200kg	70%	880 mm	1273 mm	1560 mm	7 Shelves
22 118-0	200 kg	70%	880 mm	1273 mm	1560 mm	8 Shelves
22 119-0	200 kg	70%	880 mm	1273 mm	1560 mm	9 Shelves
22 112-1	200 kg	70%	880 mm	1273 mm	1560 mm	2 Shelves, shelf lock
22 113-1	200 kg	70%	880 mm	1273 mm	1560 mm	3 Shelves, shelf lock
22 114-1	200 kg	70%	880 mm	1273 mm	1560 mm	4 Shelves, shelf lock

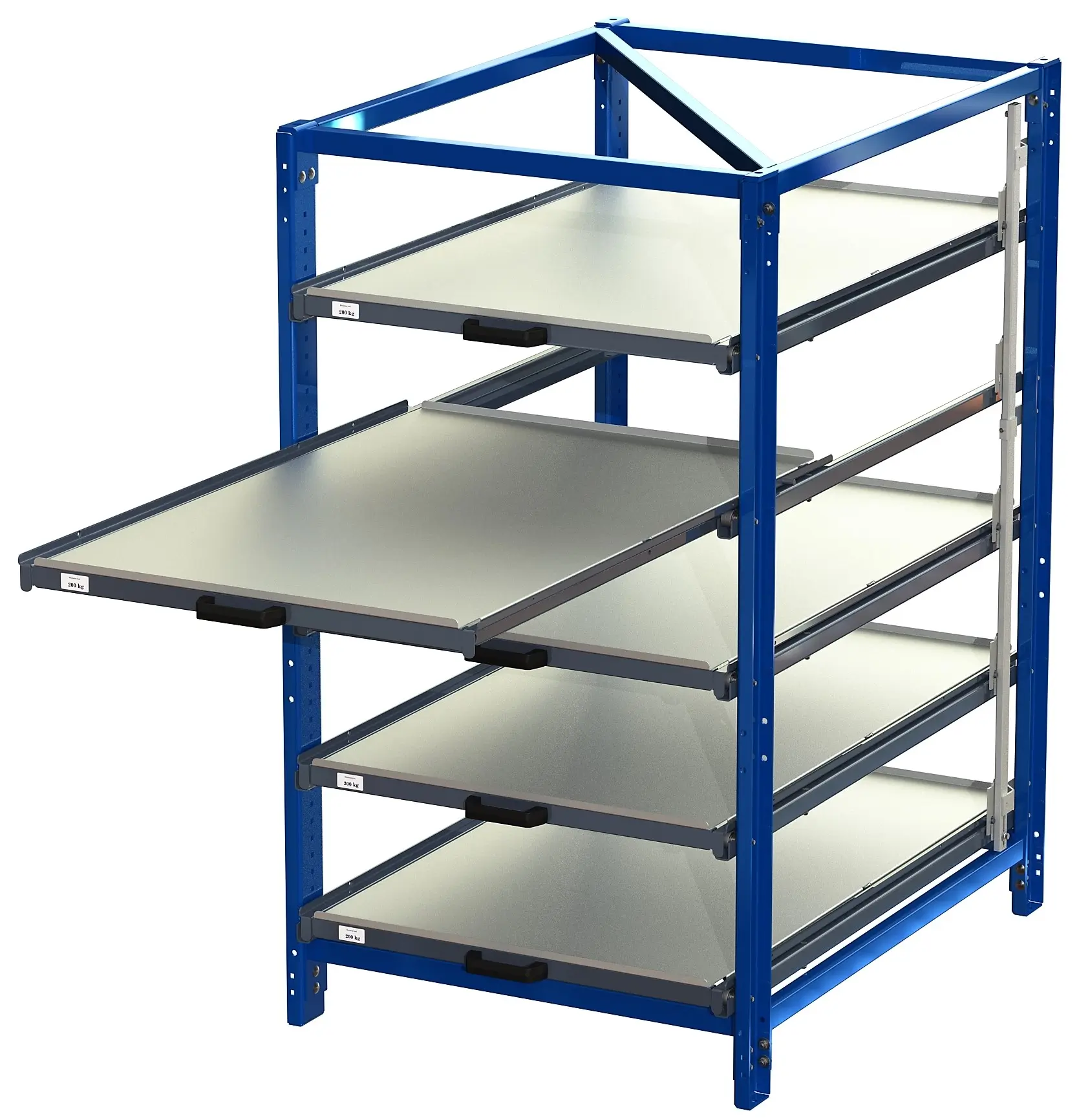

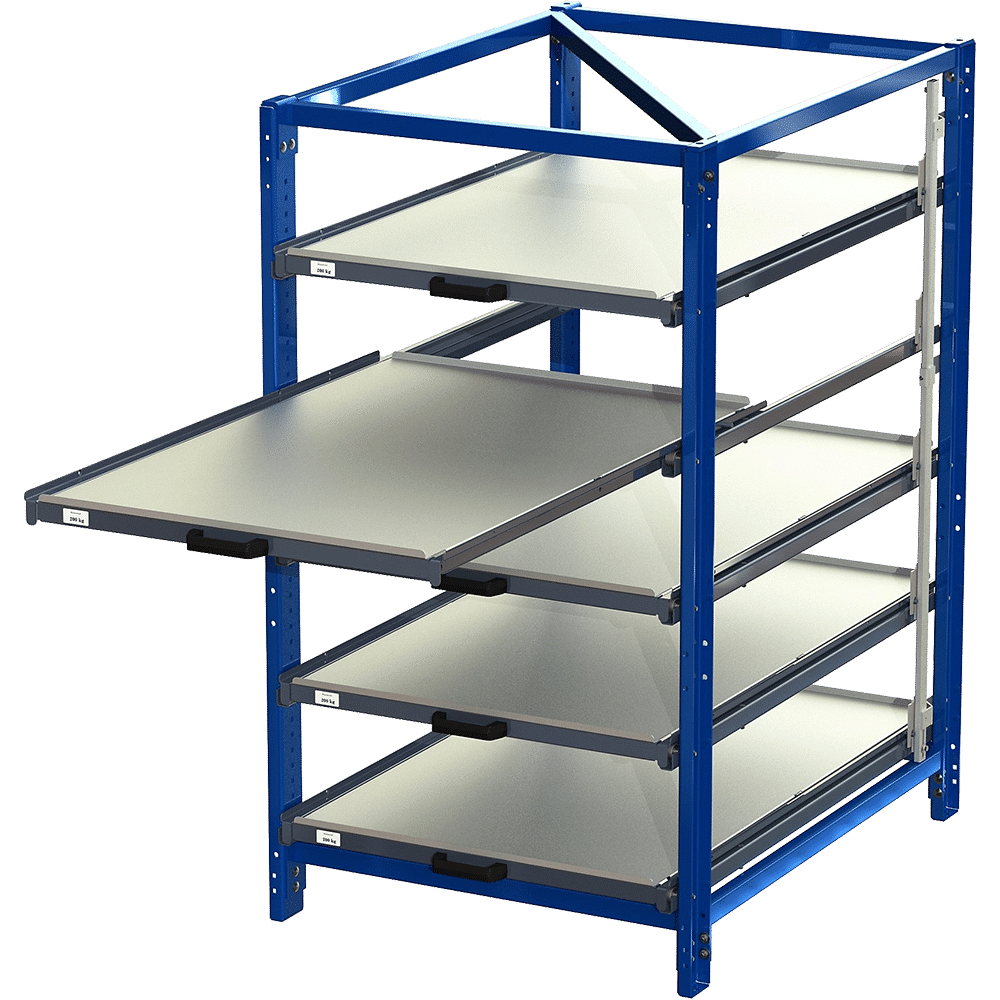

22 115-1	200 kg	70%	880 mm	1273 mm	1560 mm	5 Shelves, shelf lock
22 116-1	200 kg	70%	880 mm	1273 mm	1560 mm	6 Shelves, shelf lock
22 117-1	200 kg	70%	880 mm	1273 mm	1560 mm	7 Shelves, shelf lock
22 118-1	200 kg	70%	880 mm	1273 mm	1560 mm	8 Shelves, shelf lock
22 119-1H	200 kg	70%	880 mm	1273 mm	1710 mm	9 Shelves, shelf lock

Compact Storage Unit
Short-side handled
100%

ART.NO.			Width	Depth	Height	Specification
22 121-0	150 kg	100%	880 mm	1273 mm	1560 mm	1 Shelf
22 122-0	150 kg	100%	880 mm	1273 mm	1560 mm	2 Shelves
22 123-0	150kg	100%	880 mm	1273 mm	1560 mm	3 Shelves
22 124-0	150 kg	100%	880 mm	1273 mm	1560 mm	4 Shelves
22 125-0	150 kg	100%	880 mm	1273 mm	1560 mm	5 Shelves
22 126-0	150 kg	100%	880 mm	1273 mm	1560 mm	6 Shelves
22 127-0	150 kg	100%	880 mm	1273 mm	1560 mm	7 Shelves
22 128-0	150 kg	100%	880 mm	1273 mm	1560 mm	8 Shelves
22 129-0	150 kg	100%	880 mm	1273 mm	1560 mm	9 Shelves
22 122-1	150 kg	100%	880 mm	1273 mm	1560 mm	2 Shelves, shelf lock
22 123-1	150kg	100%	880 mm	1273 mm	1560 mm	3 Shelves, shelf lock
22 124-1	150 kg	100%	880 mm	1273 mm	1560 mm	4 Shelves, shelf lock

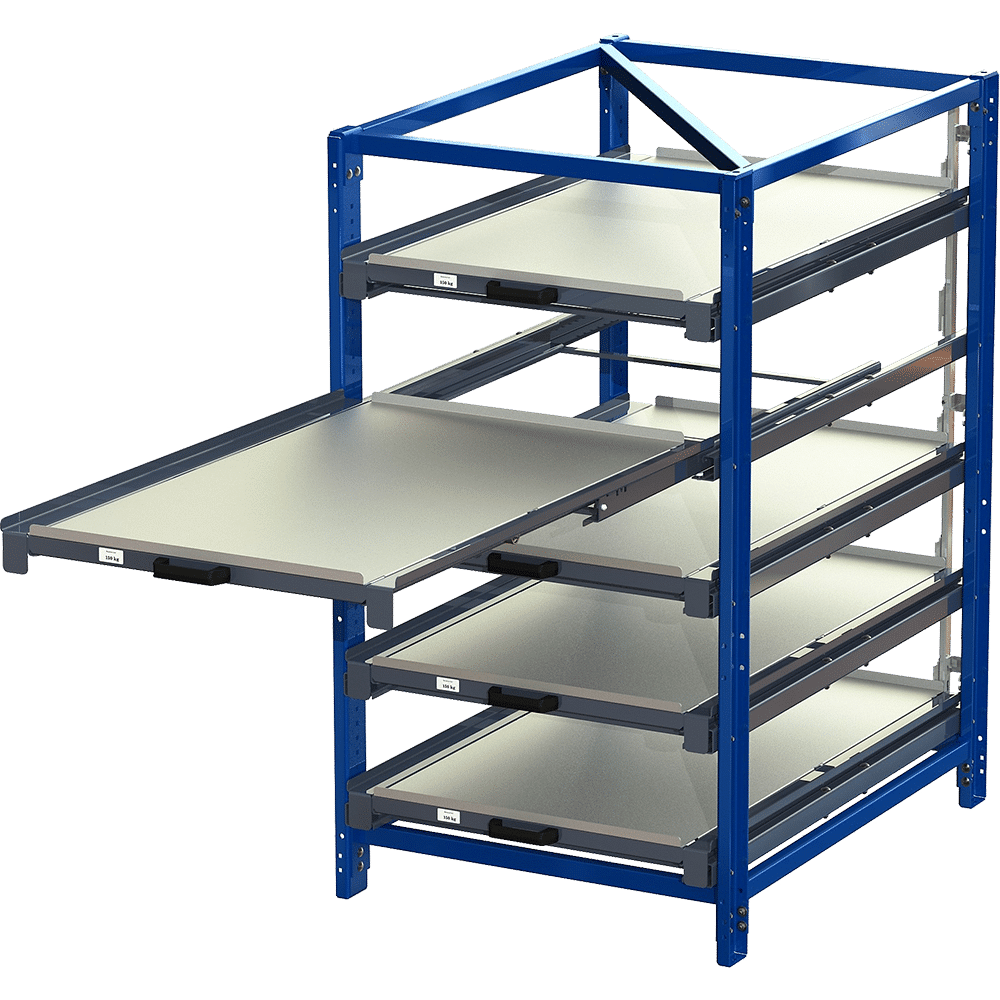

22 125-1	150 kg	100%	880 mm	1273 mm	1560 mm	5 Shelves, shelf lock
22 126-1	150 kg	100%	880 mm	1273 mm	1560 mm	6 Shelves, shelf lock
22 127-1	150 kg	100%	880 mm	1273 mm	1560 mm	7 Shelves, shelf lock
22 128-1	150 kg	100%	880 mm	1273 mm	1560 mm	8 Shelves, shelf lock
22 129-1H	150 kg	100%	880 mm	1273 mm	1710 mm	9 Shelves, shelf lock

Compact Storage Unit
Short-side handled
70% 2-way pull-out

ART.NO.		(2-way)	Width	Depth	Height	Specification
22 131-0	200 kg	70%	880 mm	1314 mm	1560 mm	1 Shelf
22 132-0	200 kg	70%	880 mm	1314 mm	1560 mm	2 Shelves
22 133-0	200 kg	70%	880 mm	1314 mm	1560 mm	3 Shelves
22 134-0	200 kg	70%	880 mm	1314 mm	1560 mm	4 Shelves

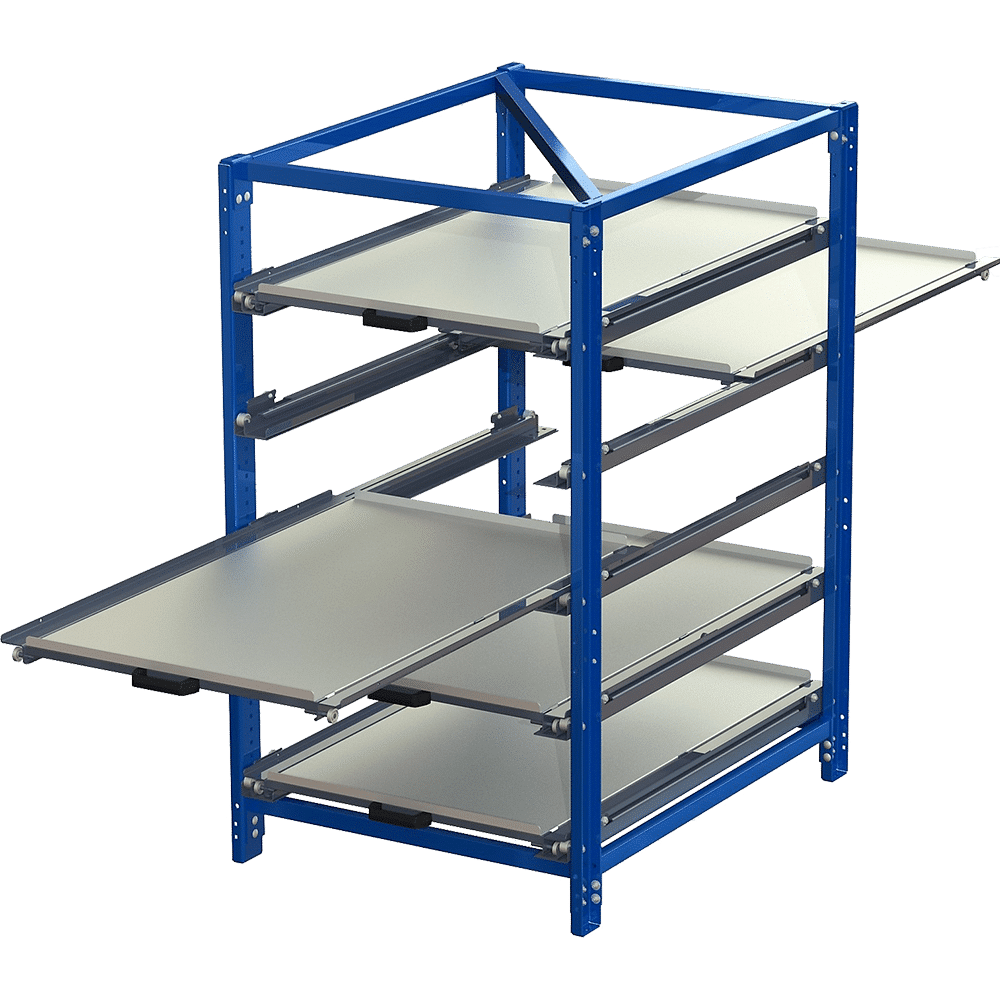

22 135-0	200 kg	70%	880 mm	1314 mm	1560 mm	5 Shelves
22 136-0	200 kg	70%	880 mm	1314 mm	1560 mm	6 Shelves
22 137-0	200 kg	70%	880 mm	1314 mm	1560 mm	7 Shelves
22 138-0	200 kg	70%	880 mm	1314 mm	1560 mm	8 Shelves
22 139-0	200 kg	70%	880 mm	1314 mm	1560 mm	9 Shelves

Compact Storage Unit
Long-side handled
70%

ART.NO.		(1-way)	Width	Depth	Height	Specification
22 211-0	200 kg	70%	1280 mm	900 mm	1560 mm	1 Shelf
22 212-0	200 kg	70%	1280 mm	900 mm	1560 mm	2 Shelves
22 213-0	200 kg	70%	1280 mm	900 mm	1560 mm	3 Shelves

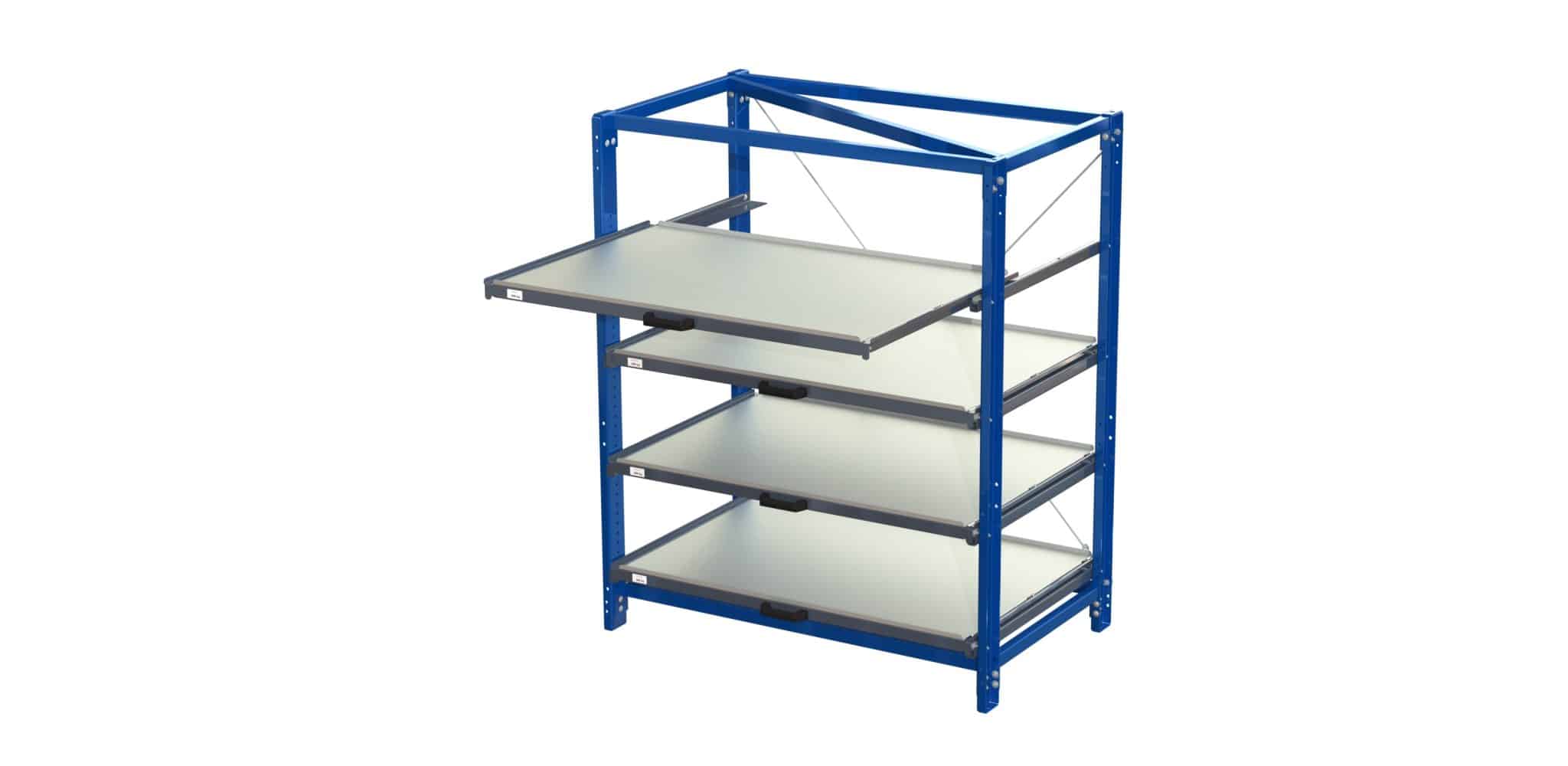

22 214-0	200 kg	70%	1280 mm	900 mm	1560 mm	4 Shelves
22 215-0	200 kg	70%	1280 mm	900 mm	1560 mm	5 Shelves
22 216-0	200 kg	70%	1280 mm	900 mm	1560 mm	6 Shelves
22 217-0	200 kg	70%	1280 mm	900 mm	1560 mm	7 Shelves
22 218-0	200 kg	70%	1280 mm	900 mm	1560 mm	8 Shelves
22 219-0	200 kg	70%	1280 mm	900 mm	1560 mm	9 Shelves
22 212-1	200 kg	70%	1280 mm	900 mm	1560 mm	2 Shelves, shelf lock
22 213-1	200 kg	70%	1280 mm	900 mm	1560 mm	3 Shelves, shelf lock
22 214-1	200 kg	70%	1280 mm	900 mm	1560 mm	4 Shelves, shelf lock
22 215-1	200 kg	70%	1280 mm	900 mm	1560 mm	5 Shelves, shelf lock
22 216-1	200 kg	70%	1280 mm	900 mm	1560 mm	6 Shelves, shelf lock
22 217-1	200 kg	70%	1280 mm	952 mm	1560 mm	7 Shelves, shelf lock
22 218-1	200 kg	70%	1280 mm	952 mm	1560 mm	8 Shelves, shelf lock
22 219-1H	200 kg	70%	1280 mm	952 mm	1710 mm	9 Shelves, shelf lock

Compact Storage Unit
Long-side handled
100%

ART.NO.		(1-way)	Width	Depth	Height	Specification
22 221-0	150 kg	100%	1280 mm	900 mm	1560 mm	1 Shelf
22 222-0	150 kg	100%	1280 mm	900 mm	1560 mm	2 Shelves
22 223-0	150 kg	100%	1280 mm	900 mm	1560 mm	3 Shelves

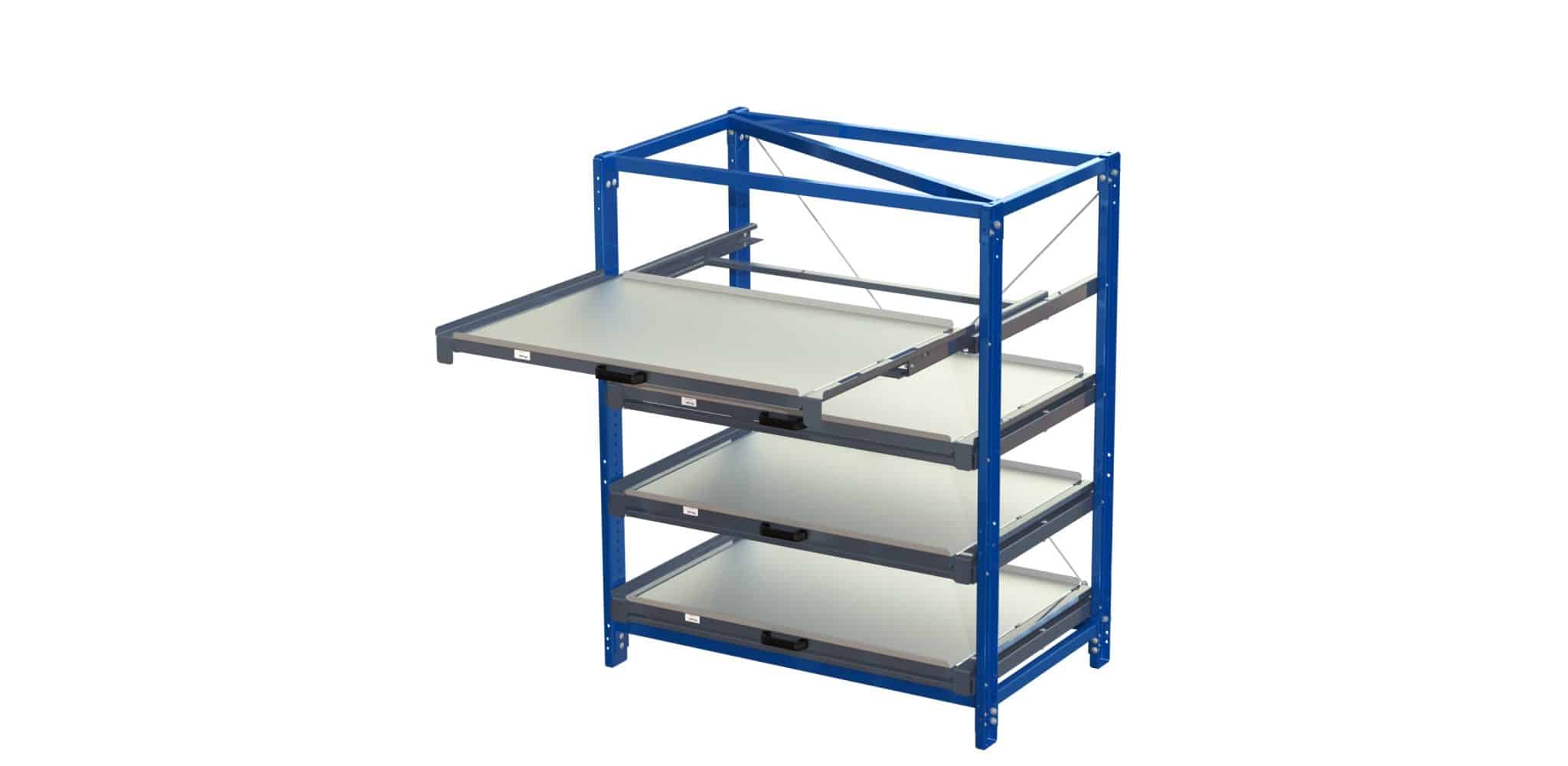

22 224-0	150 kg	100%	1280 mm	900 mm	1560 mm	4 Shelves
22 225-0	150 kg	100%	1280 mm	900 mm	1560 mm	5 Shelves
22 226-0	150 kg	100%	1280 mm	900 mm	1560 mm	6 Shelves
22 227-0	150 kg	100%	1280 mm	900 mm	1560 mm	7 Shelves
22 228-0	150 kg	100%	1280 mm	900 mm	1560 mm	8 Shelves
22 229-0	150 kg	100%	1280 mm	900 mm	1560 mm	9 Shelves
22 222-1	150 kg	100%	1280 mm	900 mm	1560 mm	3 Shelves, shelf lock
22 223-1	150 kg	100%	1280 mm	900 mm	1560 mm	4 Shelves, shelf lock
22 224-1	150 kg	100%	1280 mm	900 mm	1560 mm	5 Shelves, shelf lock
22 225-1	150 kg	100%	1280 mm	900 mm	1560 mm	6 Shelves, shelf lock
22 226-1	150 kg	100%	1280 mm	900 mm	1560 mm	7 Shelves, shelf lock
22 227-1	150 kg	100%	1280 mm	952 mm	1560 mm	8 Shelves, shelf lock
22 228-1	150 kg	100%	1280 mm	952 mm	1560 mm	9 Shelves, shelf lock
22 229-1H	150 kg	100%	1280 mm	952 mm	1710 mm	2 Shelves, shelf lock

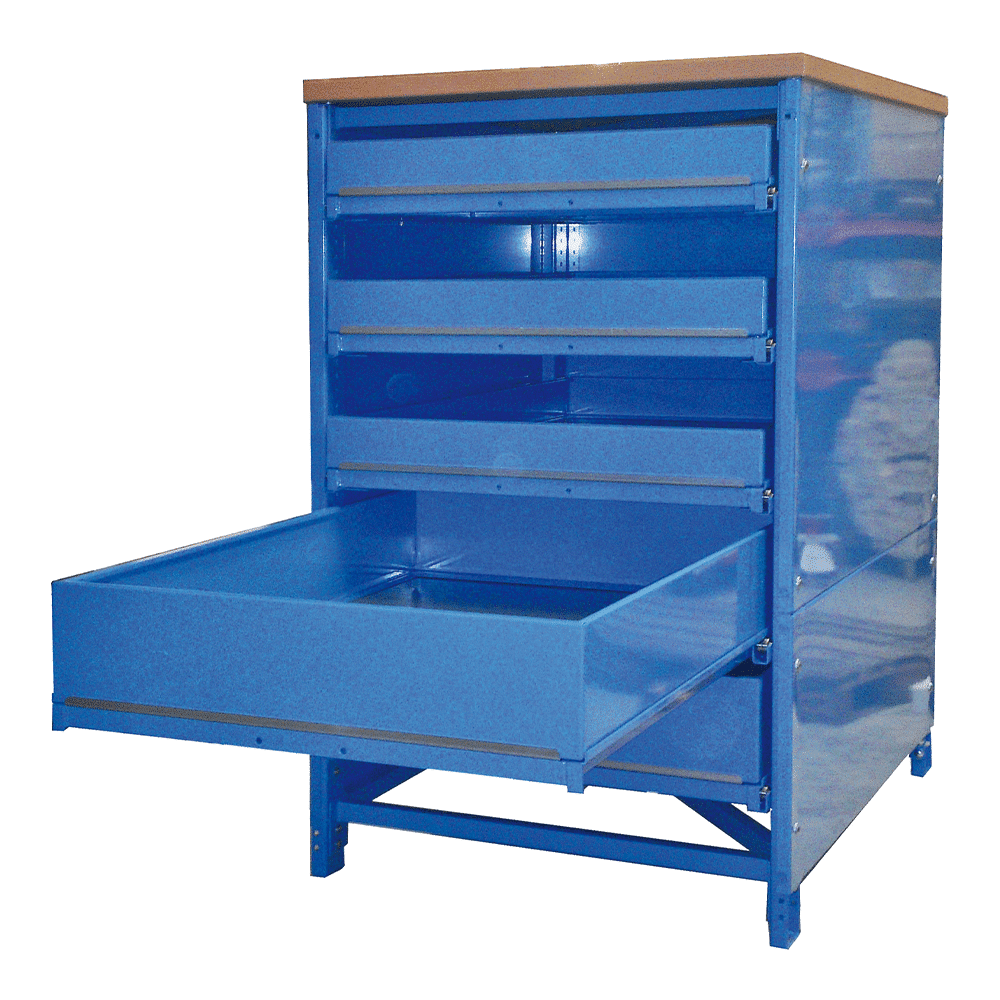

Compact Storage Unit 300 kg per shelf

The Compact Storage Module offers compact storage for a large number of details. It is excellent for smaller items with a higher load that need to be handled manually. All shelves lock automatically in the retracted position. This variant is available with 3, 4, or 5 shelves and with or without a shelf lock.

ART.NO.		(1-way)	Width	Depth	Height	Specification
22 1233-0	300 kg	100%	880 mm	1289 mm	1560 mm	3 Shelves
22 1234-0	300 kg	100%	880 mm	1289 mm	1560 mm	4 Shelves
22 1235-0	300 kg	100%	880 mm	1289 mm	1560 mm	5 Shelves
22 1233-1	300 kg	100%	880 mm	1322 mm	1560 mm	3 Shelves, shelf lock
22 1234-1	300 kg	100%	880 mm	1322 mm	1560 mm	4 Shelves, shelf lock
22 1235-1	300 kg	100%	880 mm	1322 mm	1560 mm	5 Shelves, shelf lock

Electric Tugger

-Makes It Easy To Move

Easy-to-use and nimble tugger, meticulously designed to effortlessly and securely transport heavy loads on wheels. An ideal aid that streamlines work processes and contributes to preventing health issues and accidents. The electric gripper locks the unit securely with just the push of a button, ensuring safe and stable load transport.

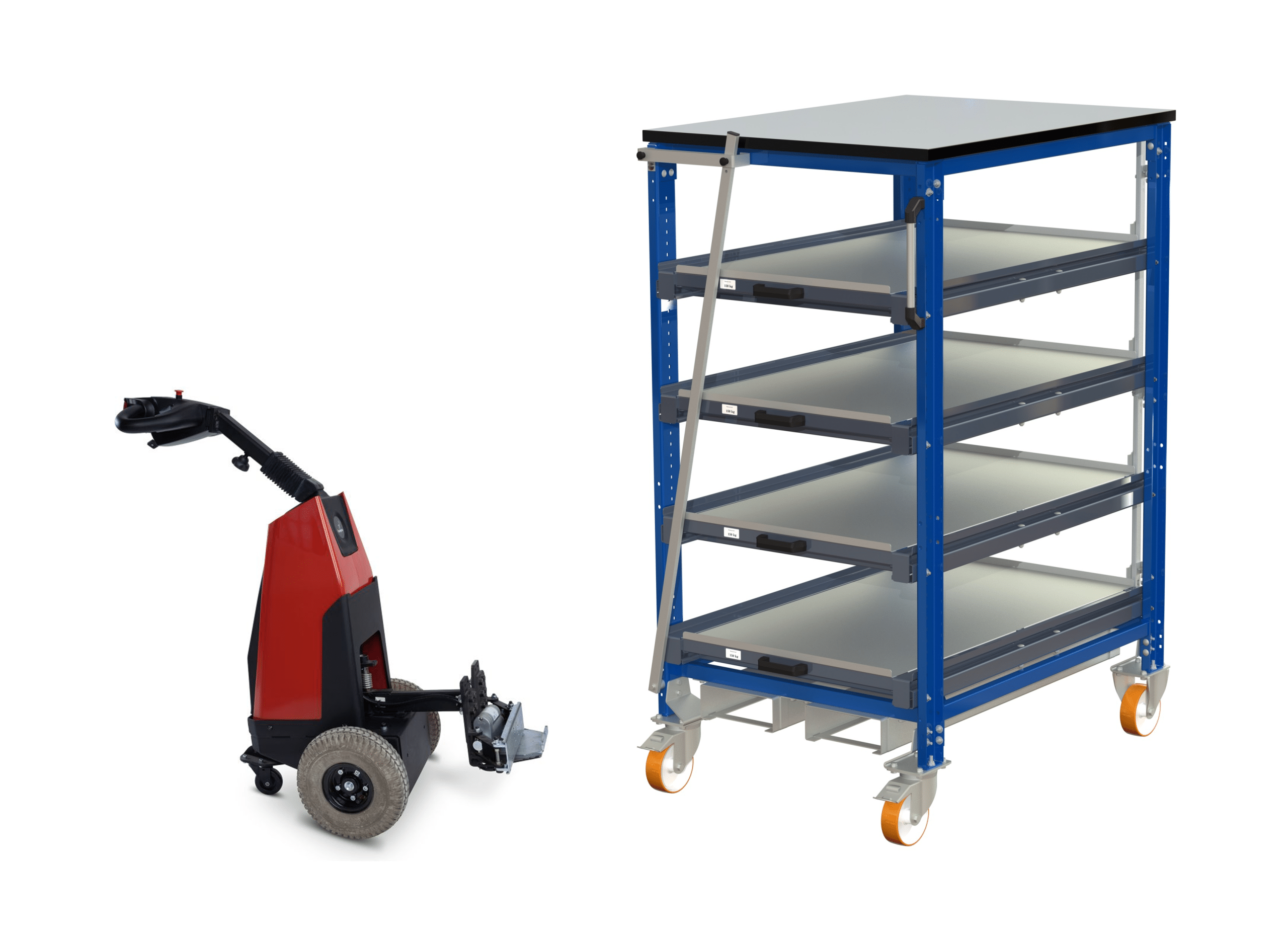

Electric tugger for Compact Storage Unit

Designed for easy movement of Compact Storage Units – easy to maneuver and use. Handles loads of up to 1.2 tons with minimal effort. It has an automatic braking system that ensures controlled stops if the operator releases the handle. An additional safety feature is the electric gripper that securely locks the Compact Storage Module in place, ensuring that the load is safely and stably transported. With foam-filled puncture-proof wheels on a differential axle, the electric tugger moves smoothly and steadily, providing a secure operation.

ART.NO.	TOWING CAPACITY	SPEED	WIDTH	LENGTH	HEIGHT	SPECIFICATION
22 DR12	1200kg	max 5 km/h	495 mm	854 mm	1015/1060 mm	Drive Wheel: 260 mm Power: 400 w
